CPU | 1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors (Please refer "CPU Support List" for more information.) |
Chipset | 1. AMD X670 |
Memory | 1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
Onboard Graphics | Integrated Graphics Processor: 1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
Audio | 1. Realtek® Audio CODEC 2. High Definition Audio 3. 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
LAN | 1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode 2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode 3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: 1. AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs 2. AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: 1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs 2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs 3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs Chipset: 1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 2. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
USB | CPU: 1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2. 2 x USB 3.2 Gen 1 ports on the back panel CPU + USB 2.0 Hub: 1. 4 x USB 2.0/1.1 ports on the back panel Chipset: 1. 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 2. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 3. 4 x USB 2.0/1.1 ports available through the internal USB headers |
Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector 2. 2 x 8-pin ATX 12V power connectors 3. 1 x CPU fan header 4. 1 x CPU fan/water cooling pump header 5. 3 x system fan headers 6. 3 x addressable RGB Gen2 LED strip headers 7. 1 x RGB LED strip header 8. 4 x SATA 6Gb/s connectors 9. 4 x M.2 Socket 3 connectors 10. 1 x front panel header 11. 1 x front panel audio header 12. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 13. 2 x USB 3.2 Gen 1 headers 14. 2 x USB 2.0/1.1 headers 15. 1 x THB_U4 add-in card connector 16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 17. 1 x power button 18. 1 x reset button 19. 1 x Clear CMOS button 20. 1 x reset jumper 21. 1 x Clear CMOS jumper |

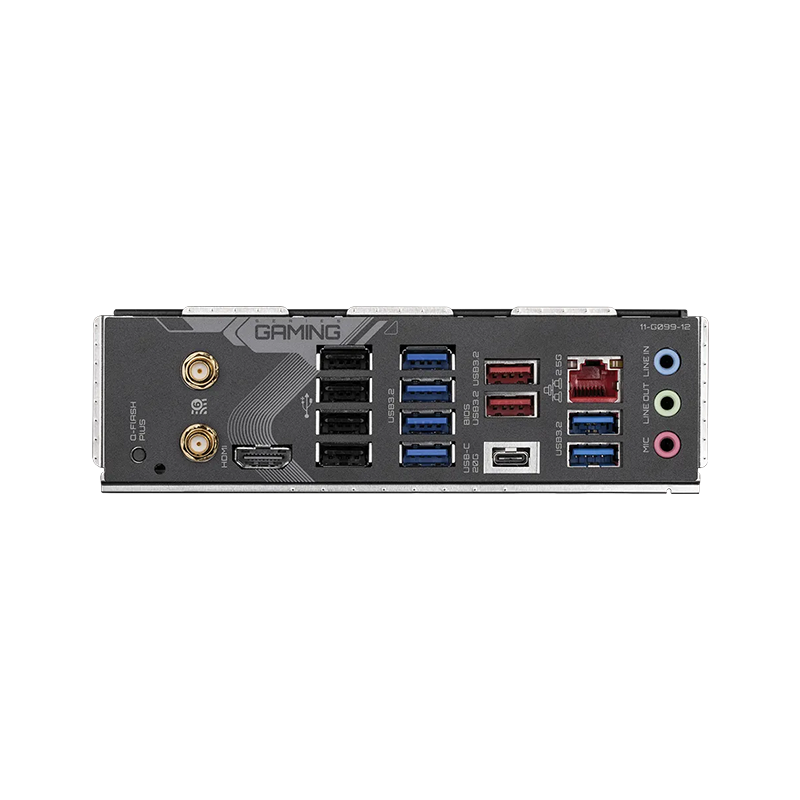

Back Panel Connectors | 1. 1 x Q-Flash Plus button 2. 2 x SMA antenna connectors (2T2R) 3. 1 x HDMI port 4. 6 x USB 3.2 Gen 1 ports 5. 4 x USB 2.0/1.1 ports 6. 2 x USB 3.2 Gen 2 Type-A ports (red) 7. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 8. 1 x RJ-45 port 9. 3 x audio jacks |
I/O Controller | 1. iTE® I/O Controller Chip |
H/W Monitoring | 1. Voltage detection 2. Temperature detection 3. Fan speed detection 4. Water cooling flow rate detection 5. Fan fail warning 6. Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
BIOS | 1. 1 x 256 Mbit flash 2. Use of licensed AMI UEFI BIOS 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | 1. Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 2. Support for Q-Flash 3. Support for Q-Flash Plus 4. Support for Smart Backup |
Bundled Software | 1. Norton® Internet Security (OEM version) 2. LAN bandwidth management software |
Operating System | 1. Support for Windows 11 64-bit 2. Support for Windows 10 64-bit |
Form Factor | 1. ATX Form Factor; 30.5cm x 24.4cm |
รับประกันศูนย์ไทย 3 ปี
