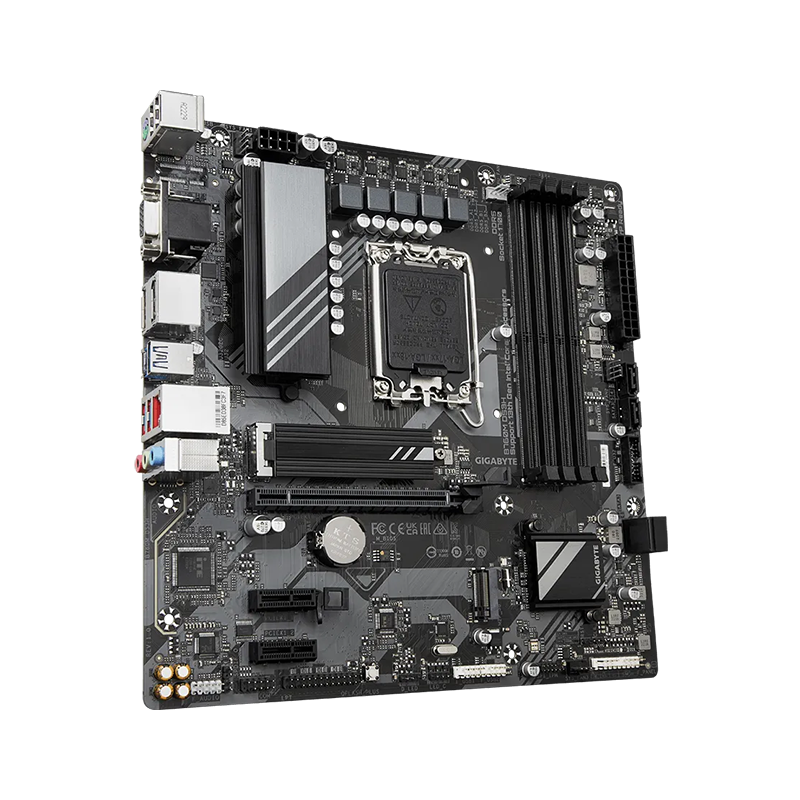

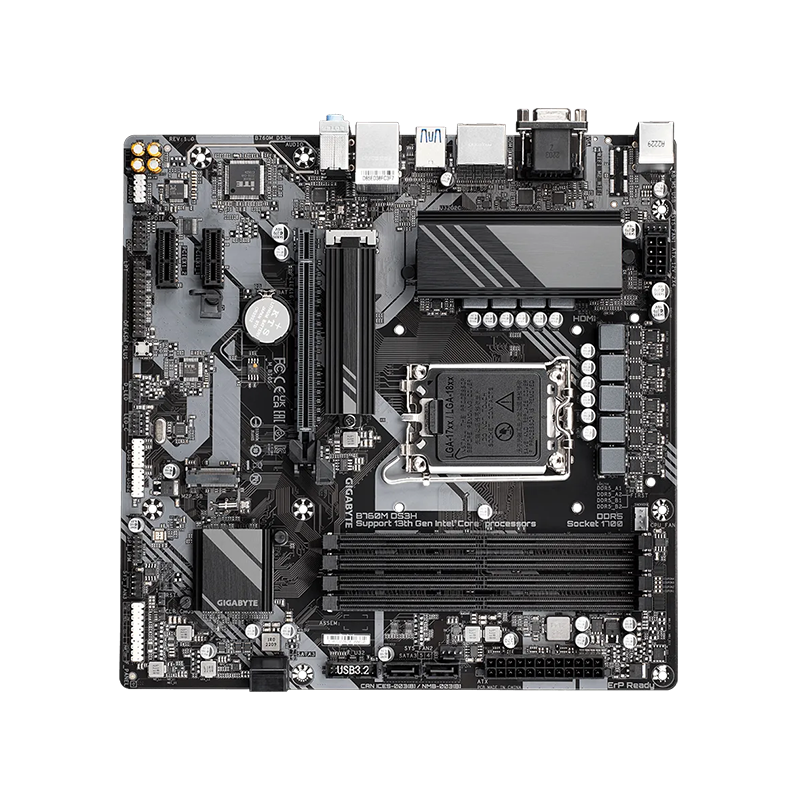

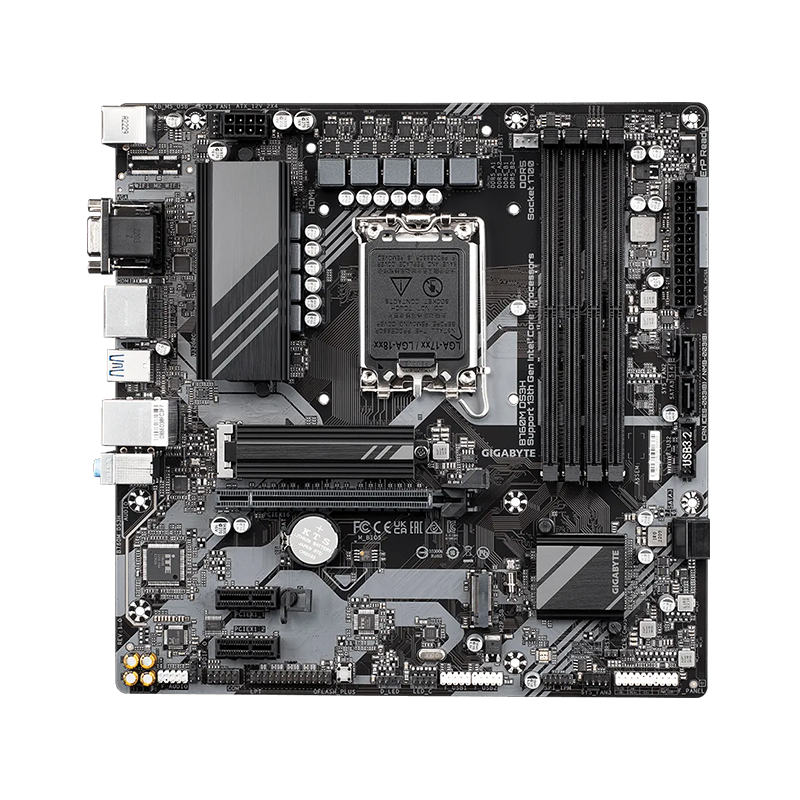

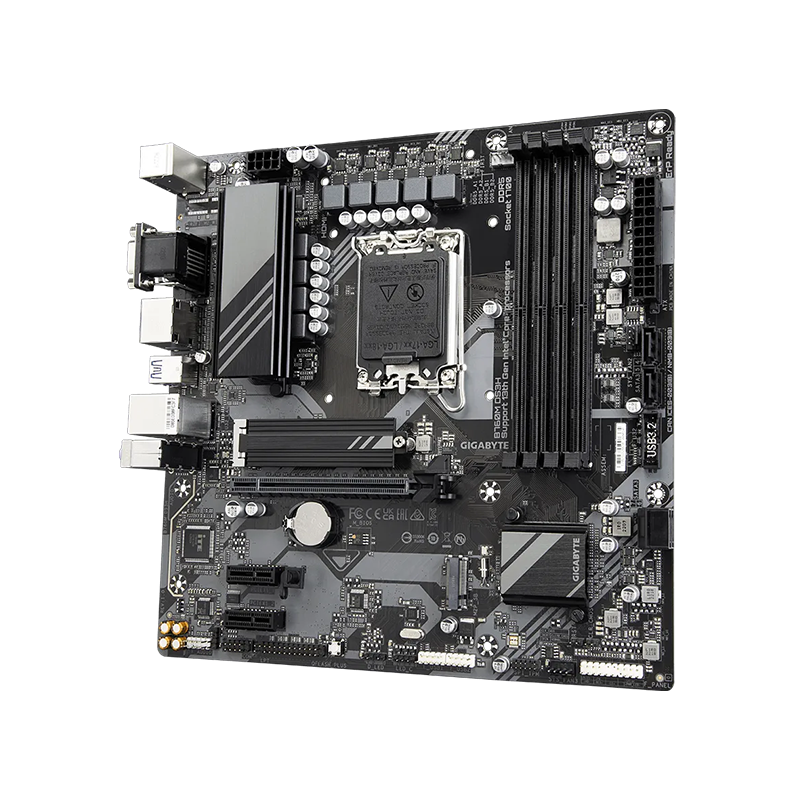

Gigabyte B760M DS3H DDR5

1. 14th and 13th Generation Intel® Core™ i9/i7 Processors:

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules

2. 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:

Support for DDR5 4800/4400 MT/s memory modules

3. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

4. Dual channel memory architecture

5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

7. Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE’s website for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz km

2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version.

(Graphics specifications may vary depending on CPU support.)

Support for up to quad-display at the same time

1. Realtek® Audio CODEC

2. High Definition Audio

3. 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

4. Support for S/PDIF Out

1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Chipset:

1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

3. 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

1. 1 x 24-pin ATX main power connector

2. 1 x 8-pin ATX 12V power connector

3. 1 x CPU fan header

4. 3 x system fan headers

5. 1 x addressable LED strip header

6. 1 x RGB LED strip header

7. 2 x M.2 Socket 3 connectors

8. 4 x SATA 6Gb/s connectors

9. 1 x front panel header

10. 1 x front panel audio header

11. 1 x USB 3.2 Gen 1 header

12. 2 x USB 2.0/1.1 headers

13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

14. 1 x serial port header

15. 1 x parallel port header

16. 1 x S/PDIF Out header

17. 1 x Q-Flash Plus button

18. 1 x reset jumper

19. 1 x Clear CMOS jumper

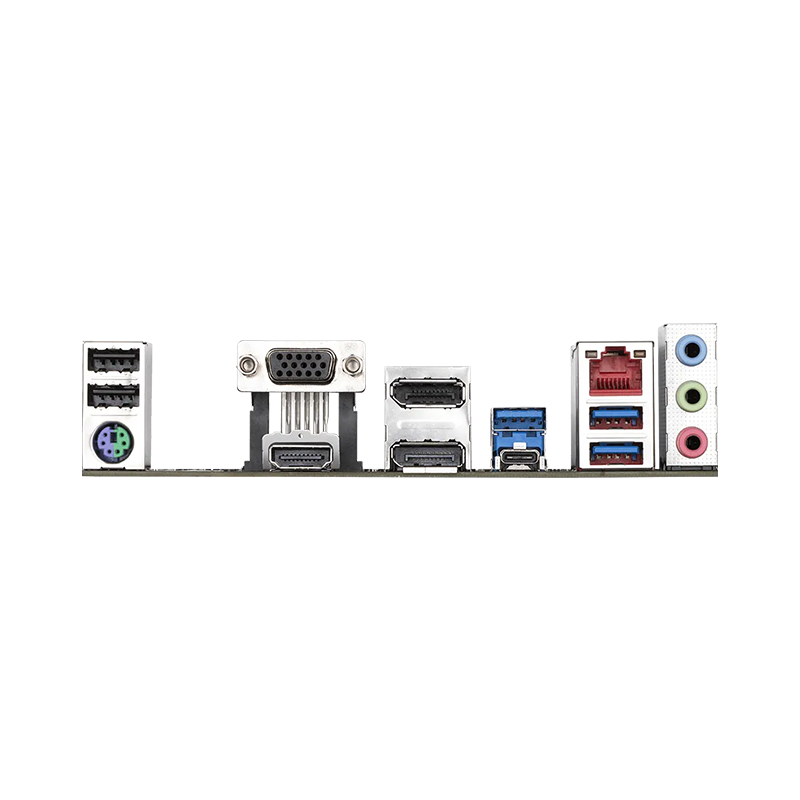

1. 2 x USB 2.0/1.1 ports

2. 1 x PS/2 keyboard/mouse port

3. 1 x D-Sub port

4. 1 x HDMI port

5. 2 x DisplayPorts

6. 3 x USB 3.2 Gen 1 ports

7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support

8. 1 x RJ-45 port

9. 3 x audio jacks

1. iTE® I/O Controller Chip

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Water cooling flow rate detection

5. Fan fail warning

6. Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 128 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

2. Support for Q-Flash

3. Support for Q-Flash Plus

1. Norton® Internet Security (OEM version)

2. LAN bandwidth management software

1. Support for Windows 11 64-bit

2. Support for Windows 10 64-bit

1. Micro ATX Form Factor; 24.4cm x 24.4cm
